HC150 Finger Bar Hedge Cutter
The Slanetrac HC Series Mini Digger Hedge Cutter range is designed for mini diggers from 1.5 tonne to 3.5 tonne.
The Slanetrac HC150 Mini Digger Finger Bar Hedge Cutter Attachment suits a wide range of machines. With a 1.5m width, the robust low maintenance Slanetrac HC Series Mini Digger Hedge Cutter has individually replaceable cutting sections come supplied with adjustable mounting brackets to suit your particular machine and hydraulic pipes to connect to your machine’s rock breaker lines for fast effortless installation.
The hydraulically powered reciprocating finger bar allows for fast and neat cutting of hedges. For best results while heavy cutting the operator can use the slewing movement of the digger to cut through thick heavy growth, while for finer, lighter breasting of the hedge the operator can use the tracking movement to get the desired finish.

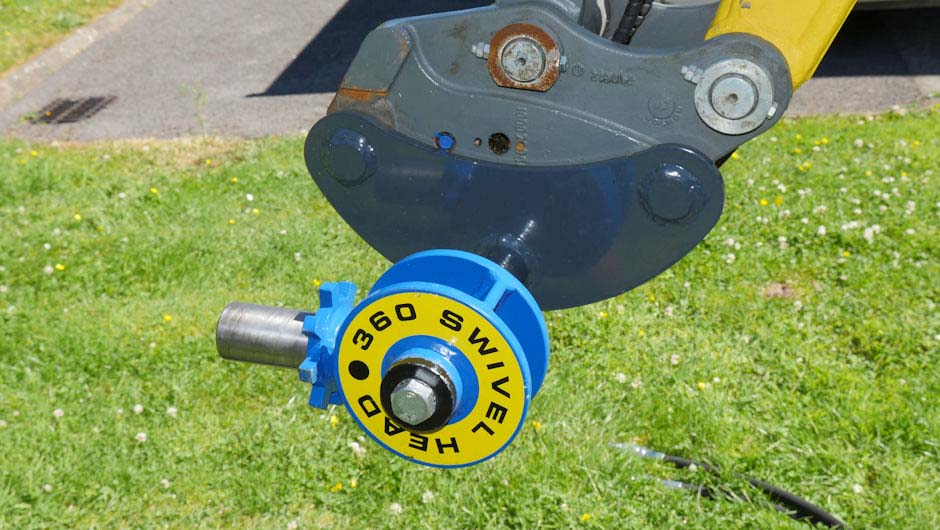

Designed to allow cutting to take place at any angle between horizontal and vertical via the adjustable mounting bracket it allows the operator better access to those hard to get places like behind fences and allows the operator to cut close to and around obstacles such as telephone poles offering greater versatility compared to flail options. With a cutting thickness of up to 40mm the Slanetrac HC Series Mini Digger Finger Bar Hedge Cutter offers clean cuts allowing for neat tidy hedges with more satisfactory conditions for re-growth compared to flail cutting attachments as well as ensuring minimum disturbance for wildlife.
Individually Replaceable Cutting Sections
Cuts up to 40mm Thickness
Connect to Rock Breaker Lines
Machine Carrier : 1.0T – 1.5T
- Oil Flow: 20L – 30L /Min
- Model: HC-150 SLX4
- Bar Length 1.5m / 5ft
Machine Carrier : 2T – 3.5T
- Oil Flow: 40L – 60L /Min
- Model: HC-150 SLX5
- Model: HC-150 SLX8
- Bar Length: 1.5m / 5ft
How To Use
For optimum performance of the HC Series Hedgecutter, it is recommended to operate in the following manner:
Cutting Top of Hedge
- Keep close to the hedge and use the slewing motion of the machine to move through the foliage. This will allow you to clean all cuttings from the hedge and ensure a neat finish.

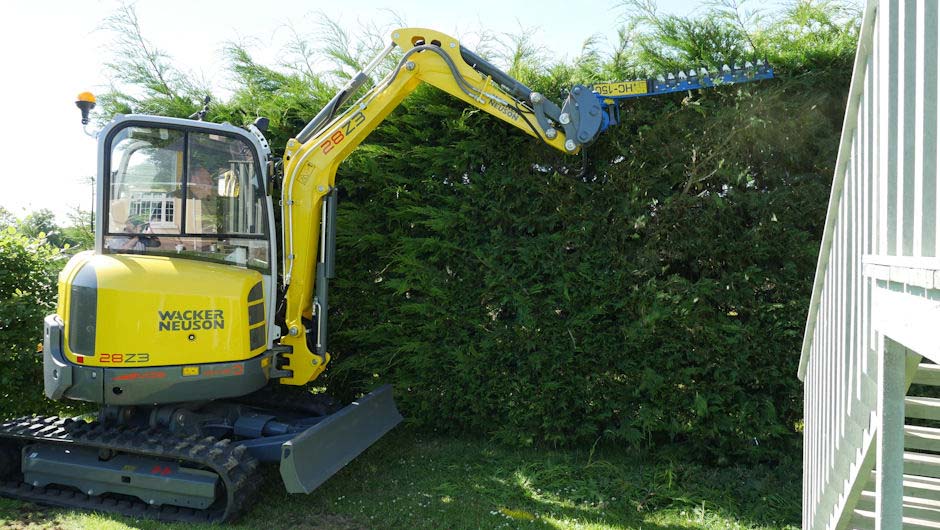

Cutting the Side of Heavy Hedge
- When cutting the side of an overgrown hedge it is best to track 1m at a time and use the slewing motion to cut.

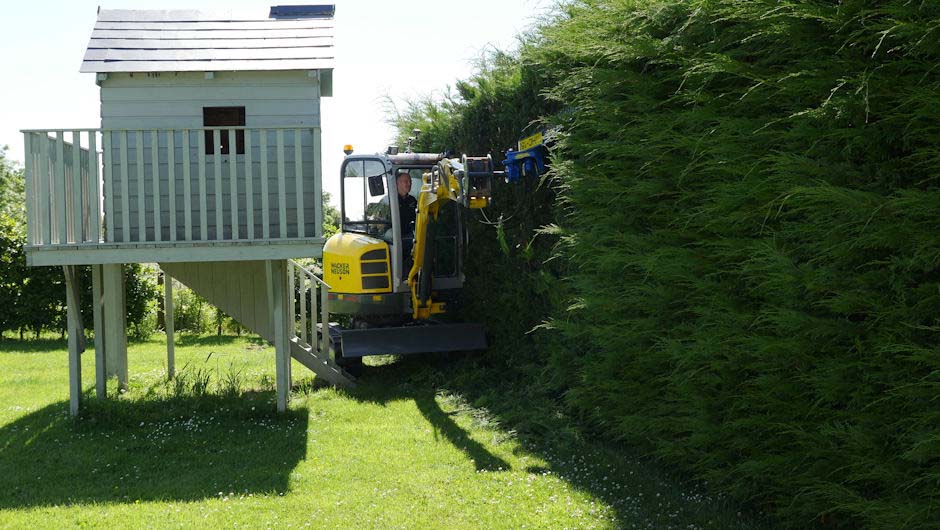

Cutting a Fine Neat Hedge
The best way to cut is using a tracking motion with the tracks aligned parallel with the hedge. When tracking and cutting, you normally increase the revs and feather the tracks. This will normally be at one quarter of movement on the tracking levers. This varies with machines. View the video to see the HC Series in use.
